The Signal Hill Water Treatment Plant Project

4 Million Gallons per Day (MGD) Capacity - Completed Oct. 2004

The Signal Hill Treatment Plant represents the final stage of the Lost Canyon Importation Project completed in 2004. This plant treats water pumped up from 1,000 feet below in elevation near the inlet of Rockport Reservoir in Eastern Summit County. After the water flows through a 5 mile high pressure transmission pipeline, it is delivered at this plant. Here some raw water is split off for irrigation in Promontory and to feed the Quinns Junction Treatment Plant, owned and operated by Park City. The remaining water is treated to high quality drinking water standards and feeds into the Promontory Development and the rest of Snyderville Basin. The total capacity f the Lost Canyon Project is about 7,000 acre feet per year.

Pictures are all presented in order of the treatment process

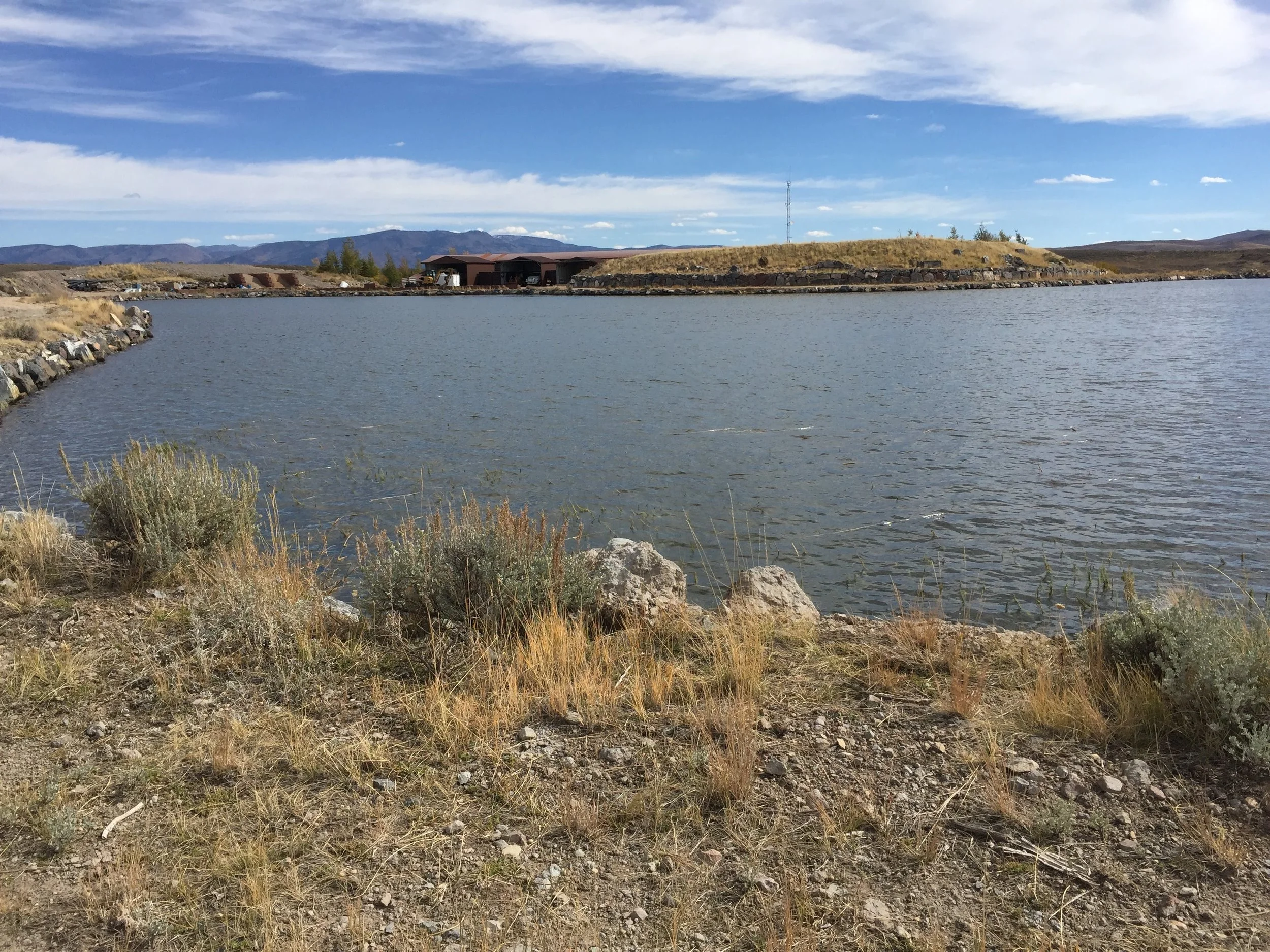

1. Raw Water Plant Feed Pond - Pumped from Rockport Reservoir

1. Raw Water Plant Feed Pond - Pumped from Rockport Reservoir

2. Flash Chemical (ACH) Mixer - On inlet water

2. Flash Chemical (ACH) Mixer - On inlet water

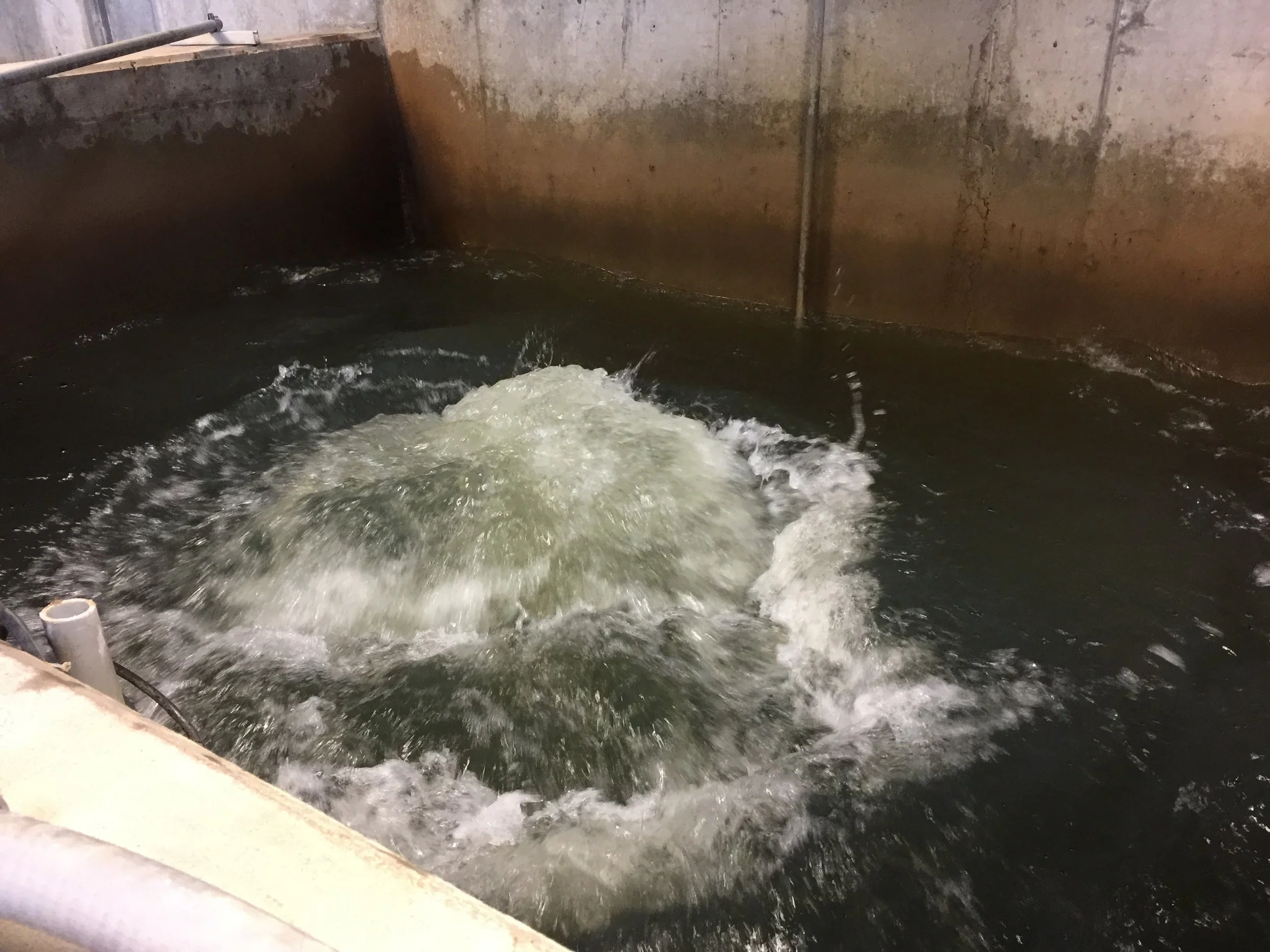

3. Fine Bubble Floculation Mixer - Building floc particles

3. Fine Bubble Floculation Mixer - Building floc particles

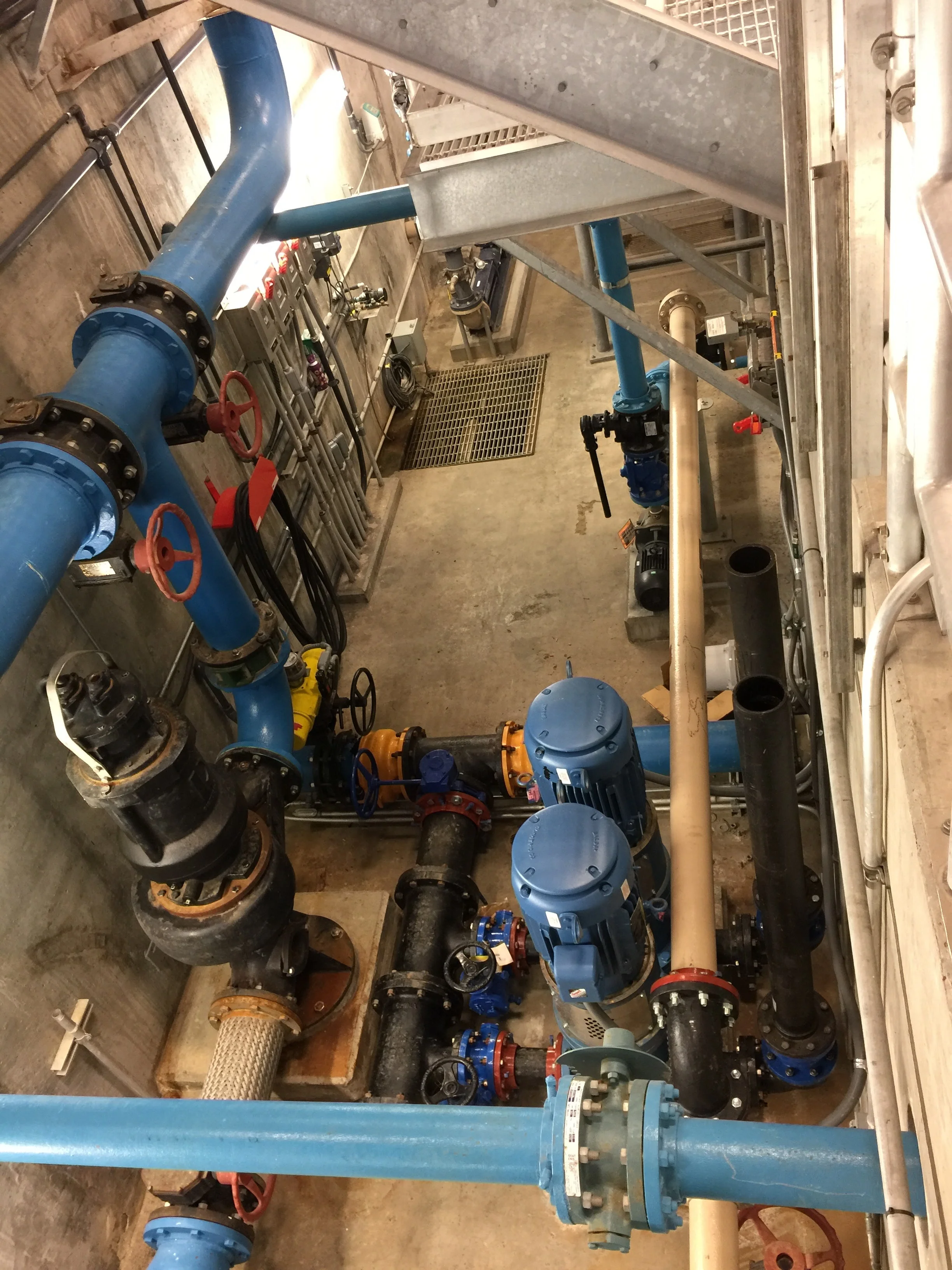

4. Raw Water Irrigation Pumps and Pipe Gallery

4. Raw Water Irrigation Pumps and Pipe Gallery

5. Plate Clarifier - Aids in the settling and sedimentation of heavy particles

5. Plate Clarifier - Aids in the settling and sedimentation of heavy particles

6. Two 1.0 MGD Micro Filtration Membrane Skids

6. Two 1.0 MGD Micro Filtration Membrane Skids

8. Close up view of membrane modules - 34 modules = 1 MGD

8. Close up view of membrane modules - 34 modules = 1 MGD

10. ACH (Aluminum Chlorohydrate Chemical Storage - used for pre-treatment coagulation.

10. ACH (Aluminum Chlorohydrate Chemical Storage - used for pre-treatment coagulation.

12. Membrane Backwash Tank showing new floating tube settlers for improved clarification.

12. Membrane Backwash Tank showing new floating tube settlers for improved clarification.

14. Pumps to deliver treated water to post-treatment system

14. Pumps to deliver treated water to post-treatment system

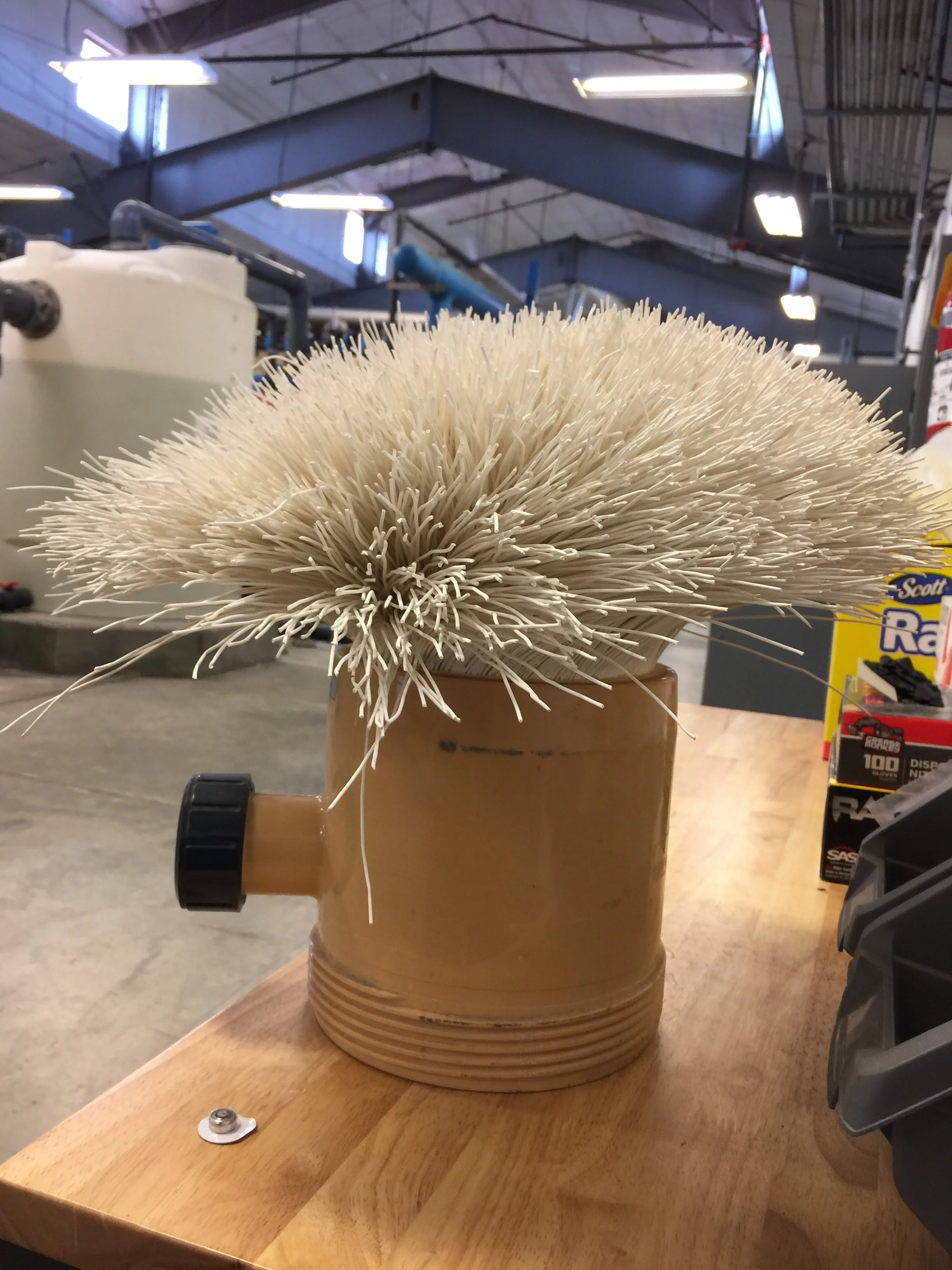

7. Close up Cutaway view showing the thousands of membrane tubes

7. Close up Cutaway view showing the thousands of membrane tubes

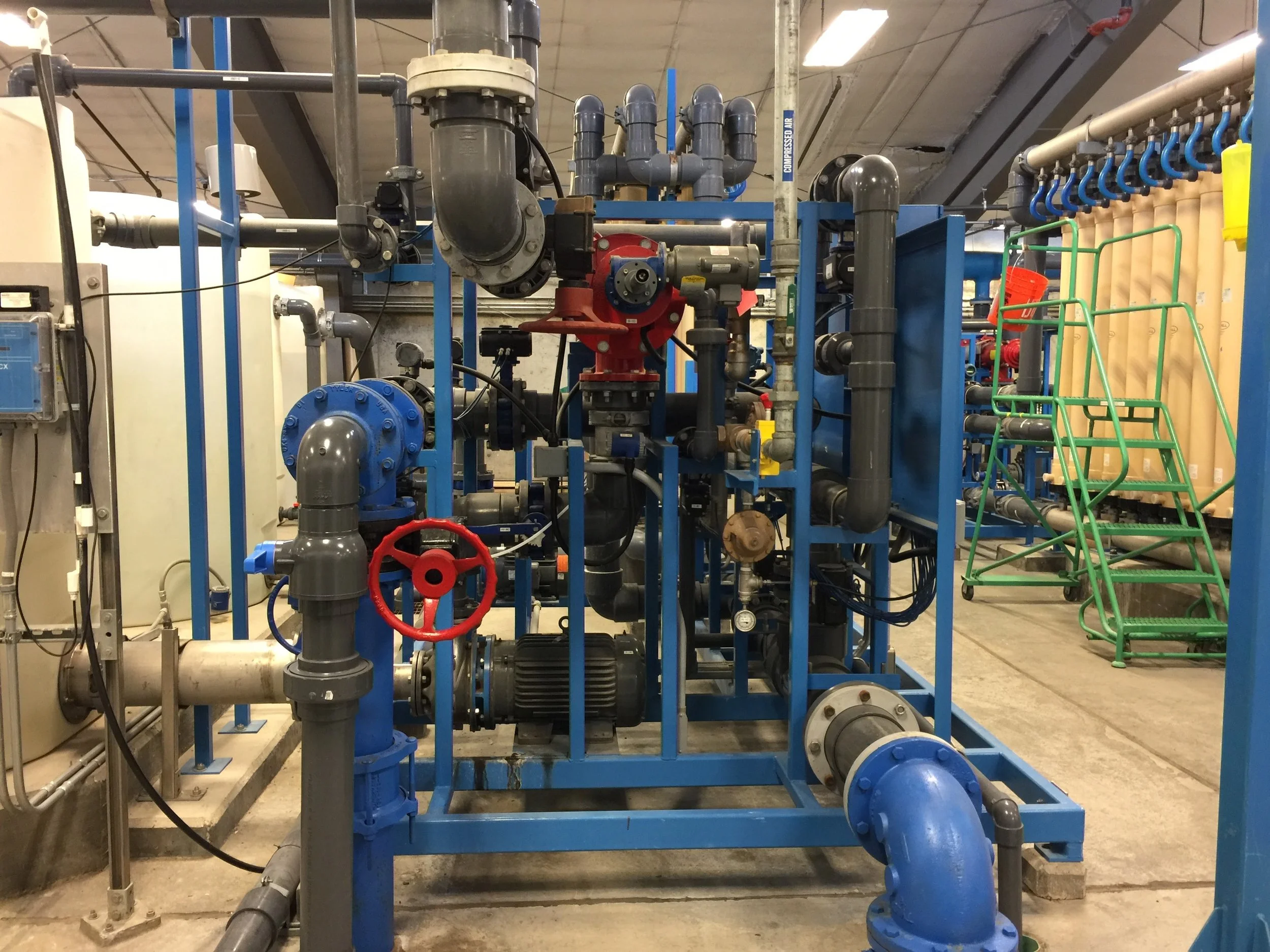

9. Control valve manifold for one treatment skid

9. Control valve manifold for one treatment skid

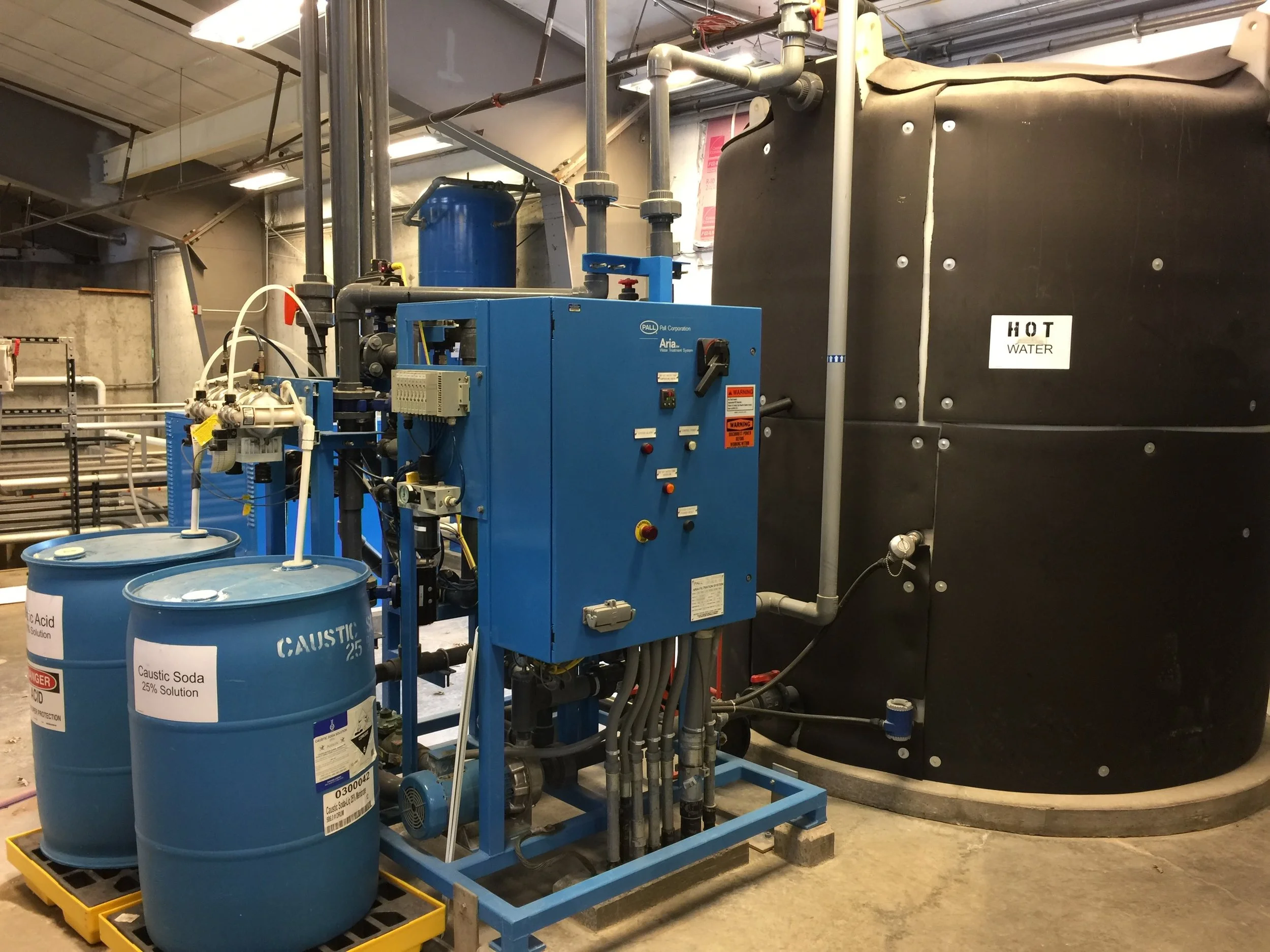

11. Clean in Place Skid - Used to heat prepare membrane cleaning solutions with chemicals.

11. Clean in Place Skid - Used to heat prepare membrane cleaning solutions with chemicals.

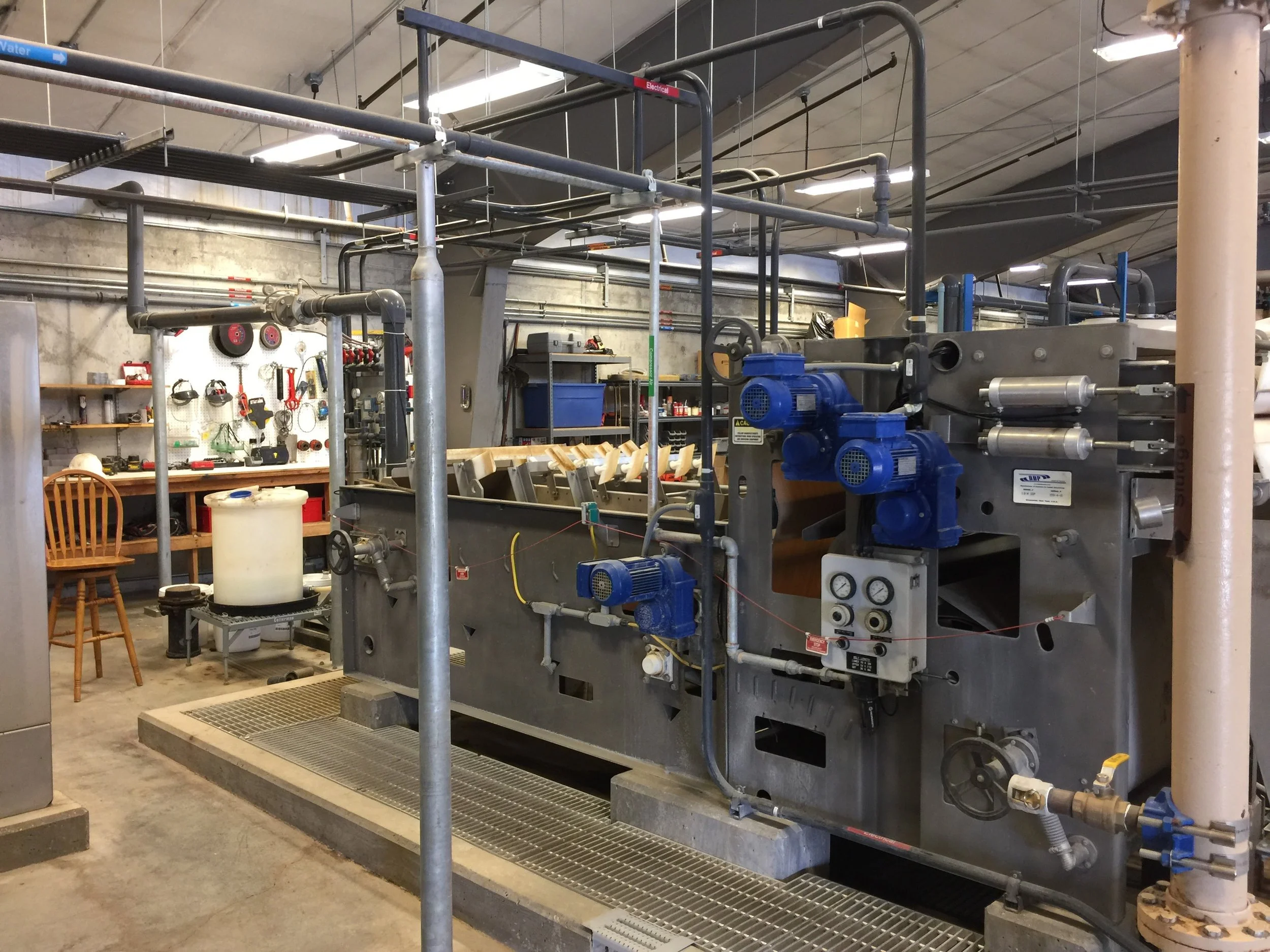

13. Belt filter press - Used to remove the most of the water from the sludge in the backwash tank prior to disposing.

13. Belt filter press - Used to remove the most of the water from the sludge in the backwash tank prior to disposing.

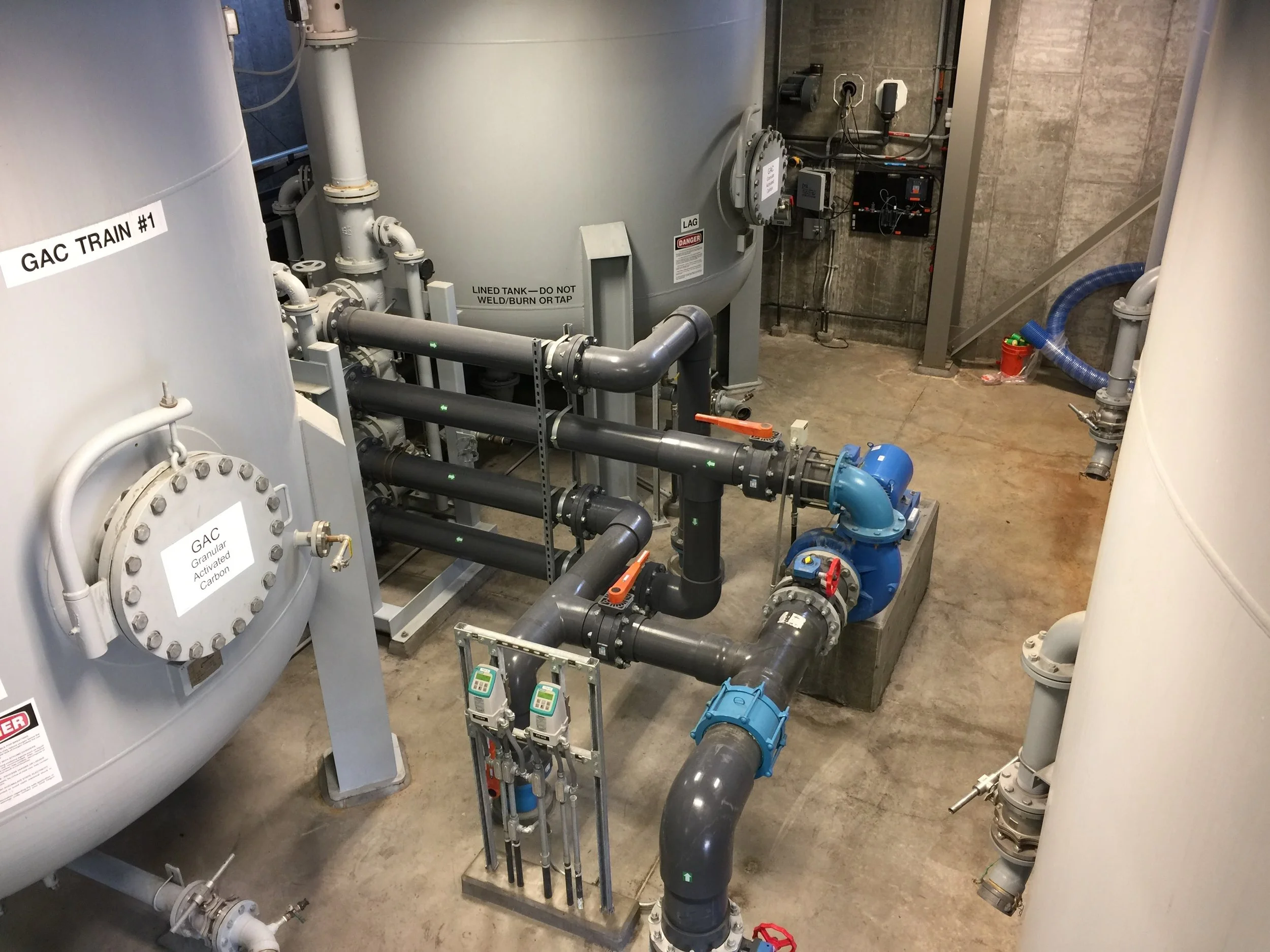

15. Post-treatment Granular Activated Carbon (GAC) Adsorber Tanks - used for finished water polishing and to remove any bad taste and odor.

15. Post-treatment Granular Activated Carbon (GAC) Adsorber Tanks - used for finished water polishing and to remove any bad taste and odor.

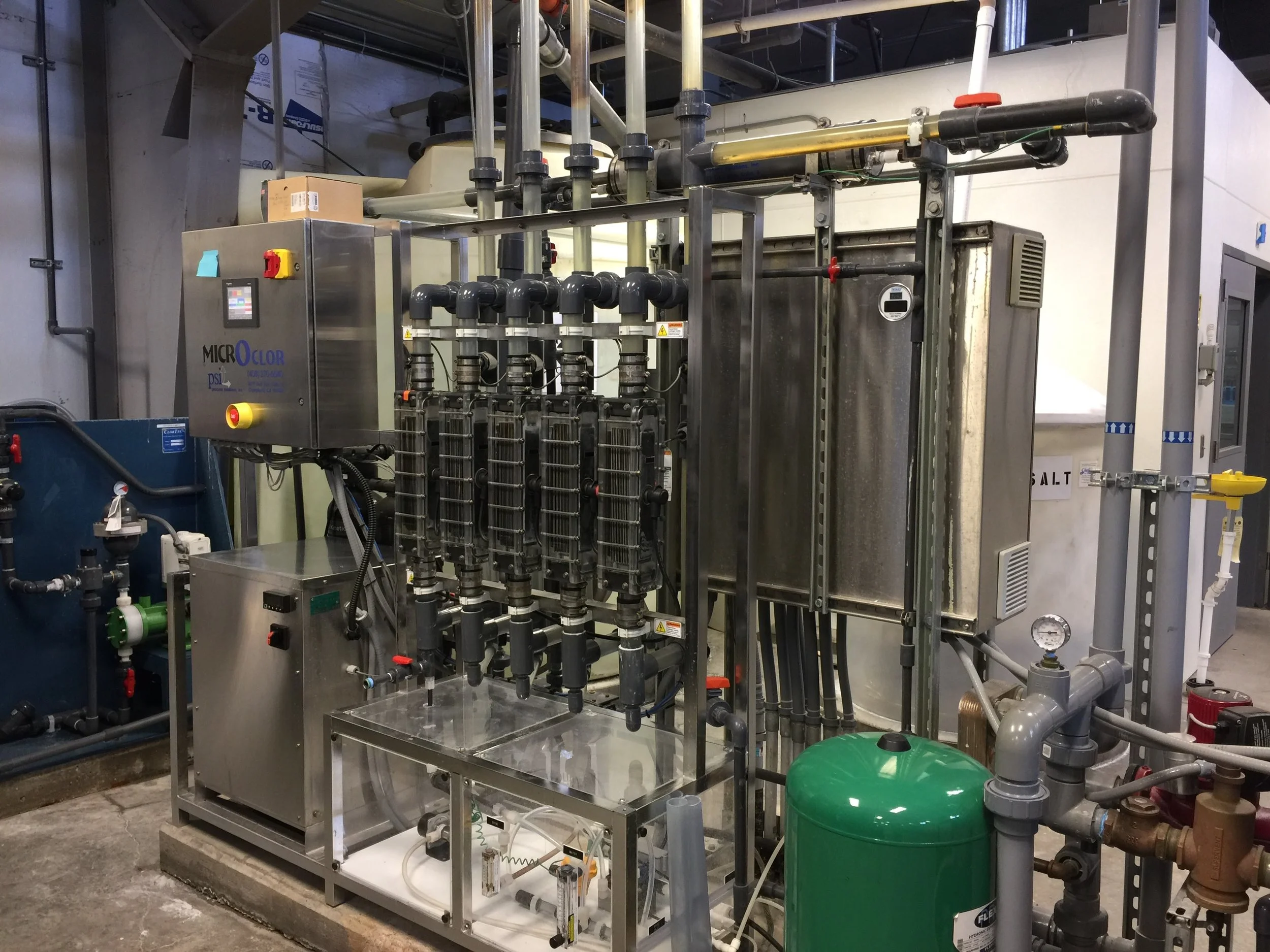

16. Chlorine Generator System - Generates chlorine safely from salt solution. Used for final disinfection of plant water before it moves into the finished water tank and distribution piping system.

16. Chlorine Generator System - Generates chlorine safely from salt solution. Used for final disinfection of plant water before it moves into the finished water tank and distribution piping system.


Operations at Plant

One of the most amazing things about Mountain Regional Water District is that the highly trained, professional staff is able to do most of the heavy maintenance and construction of much of our new infrastructure themselves. This benefits all of us by empowering personnel which can respond to most any problem or emergency - quicklu and efficiently.

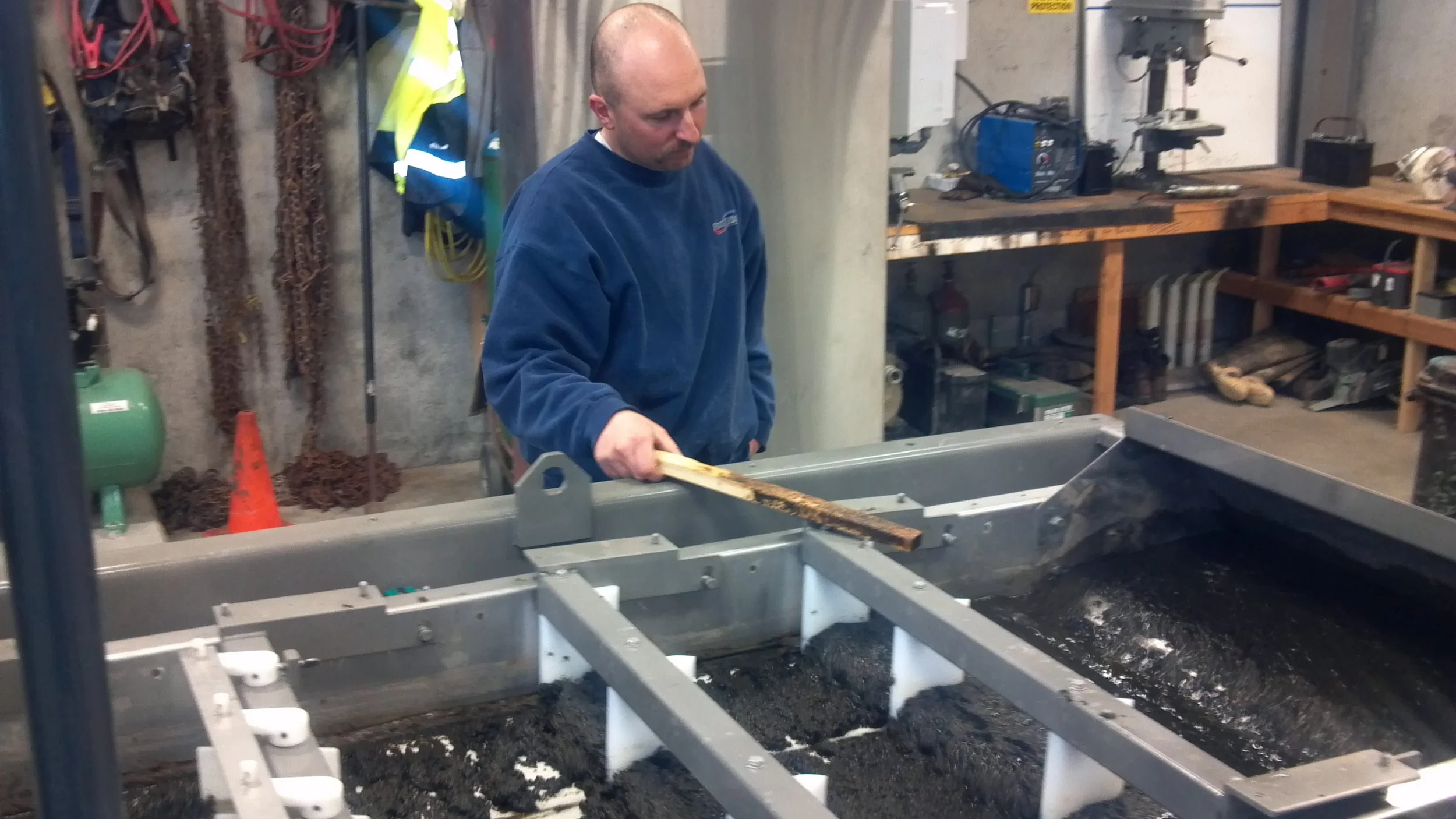

Operating the Belt Filter Press - which removes water from the plant waste sludge, to allow for proper disposal.

Operating the Belt Filter Press - which removes water from the plant waste sludge, to allow for proper disposal.

Sludge falling into hopper, where a screw pumps the sludge to a waiting dump truck.

Sludge falling into hopper, where a screw pumps the sludge to a waiting dump truck.

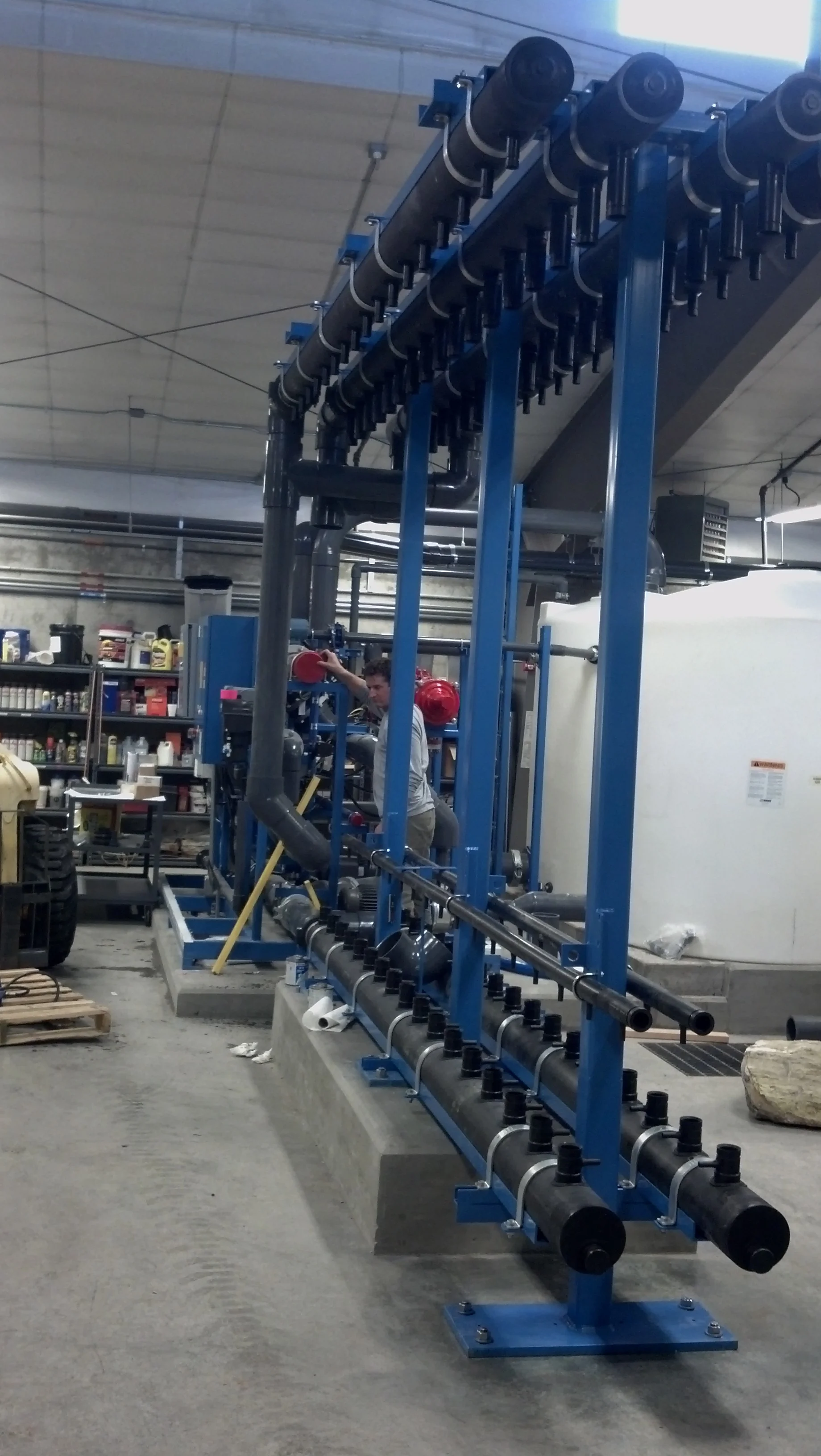

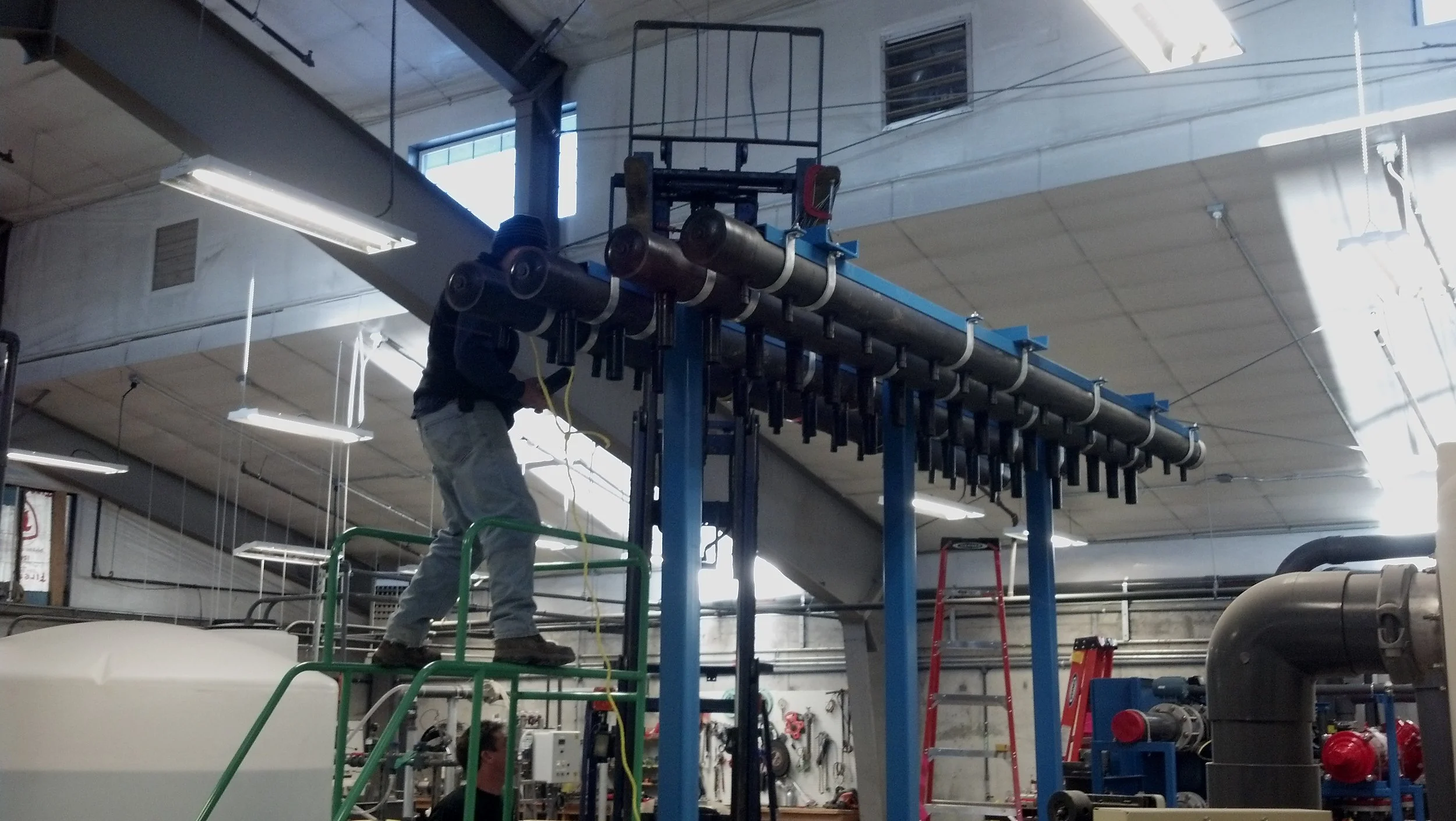

Assembling the header of the new 1 MGD plant expansion skid.

Assembling the header of the new 1 MGD plant expansion skid.

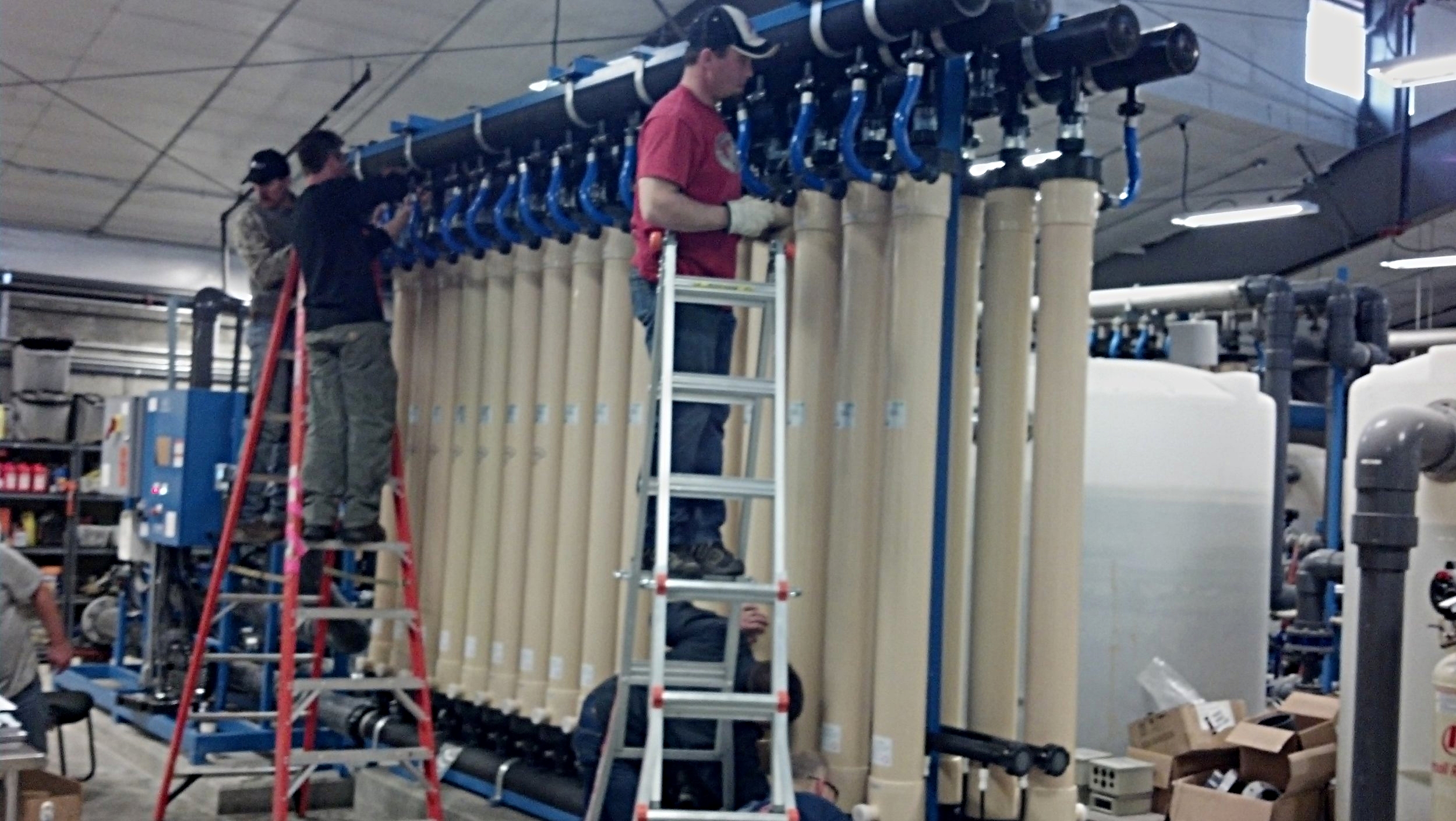

Installation of the micro-filtration membrane units on the new skid.

Installation of the micro-filtration membrane units on the new skid.

Operators repair a roof problem at the plant.

Operators repair a roof problem at the plant.

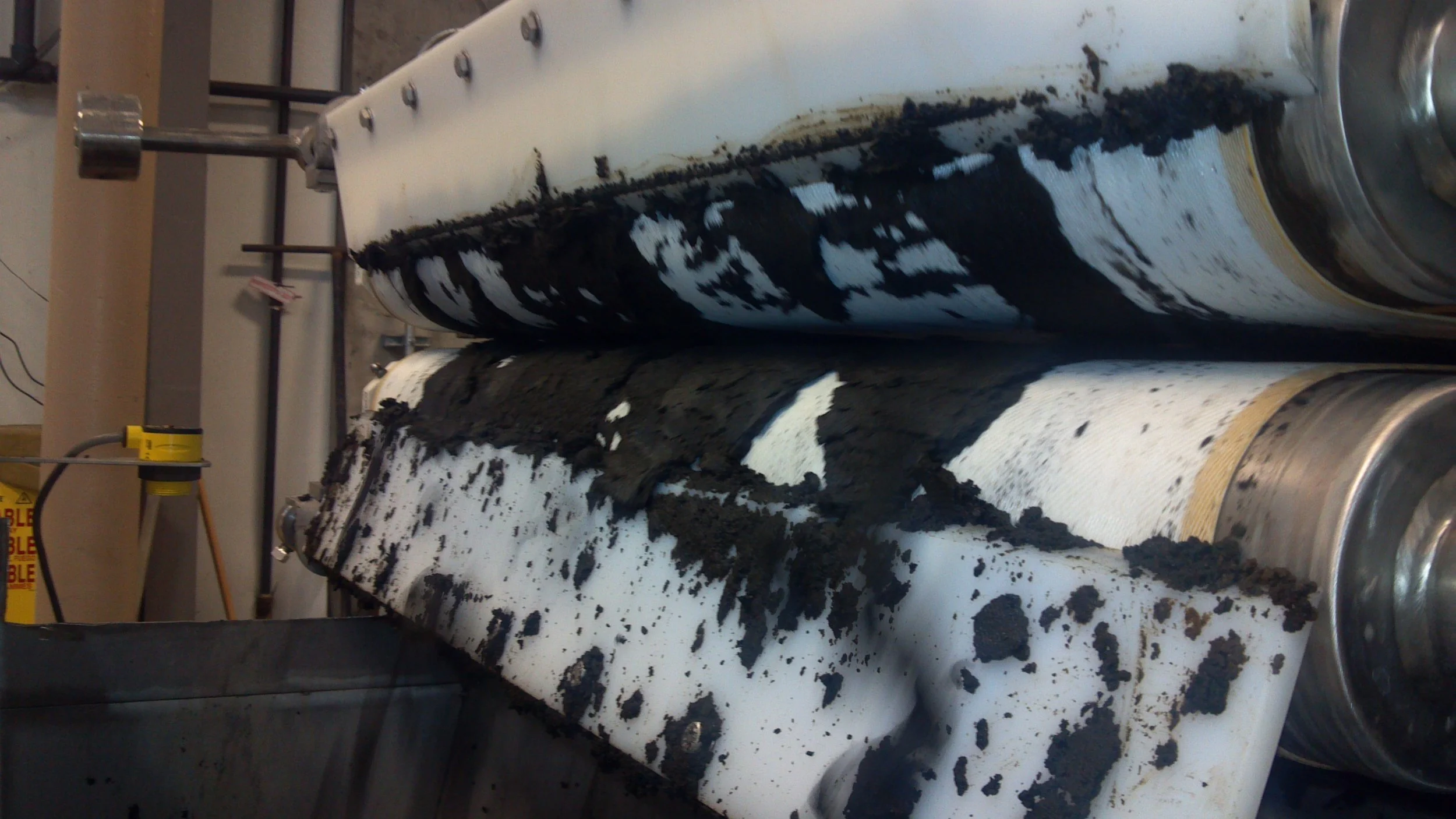

Close up view of the sludge comming off of the press.

Close up view of the sludge comming off of the press.

Operations staff beginning construction of a new 1.0 million gallon per day (MGD) membrane treatment expansion project.

Operations staff beginning construction of a new 1.0 million gallon per day (MGD) membrane treatment expansion project.

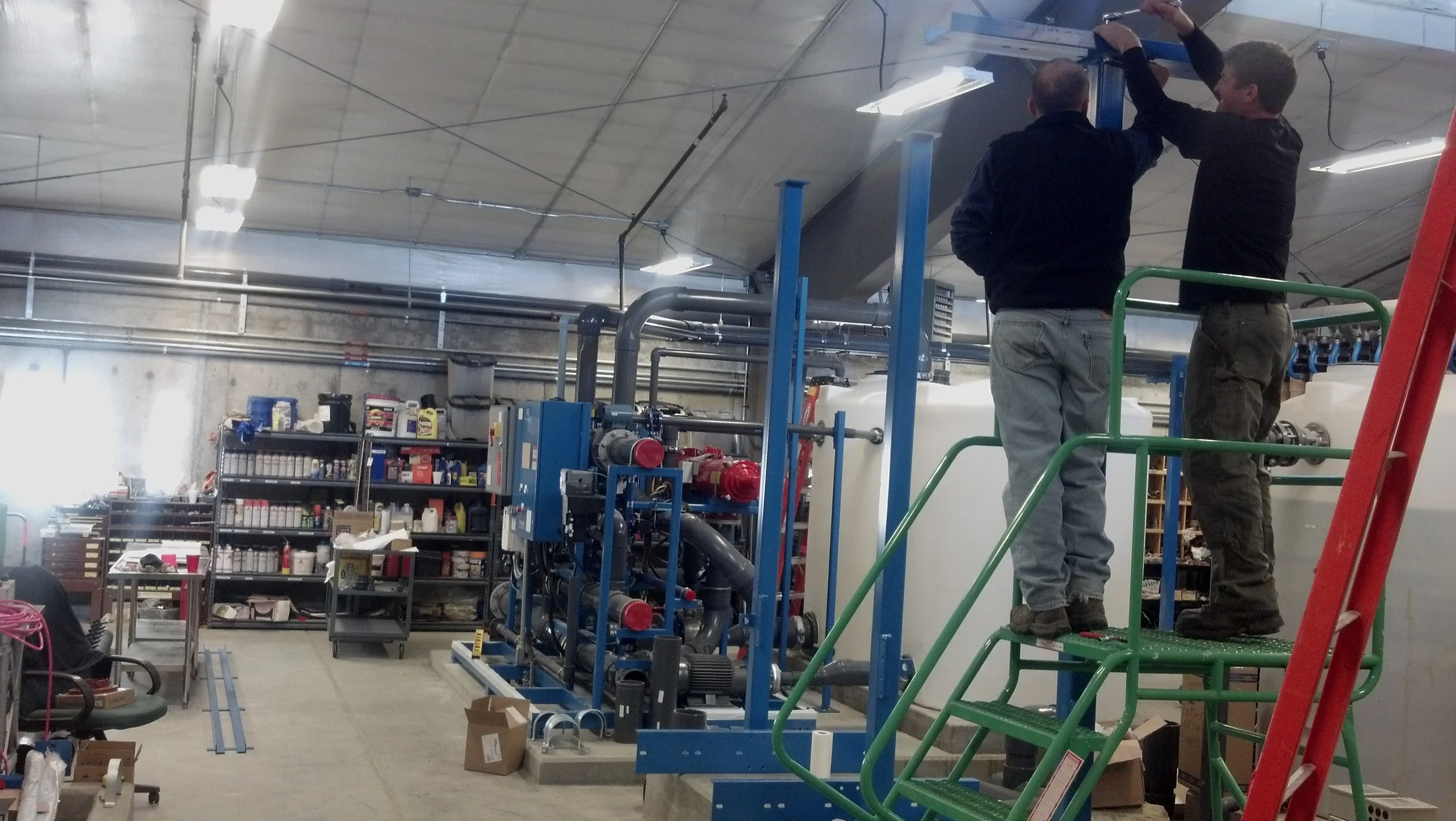

Assembly of the piping, valving, and control system of the new skid.

Assembly of the piping, valving, and control system of the new skid.

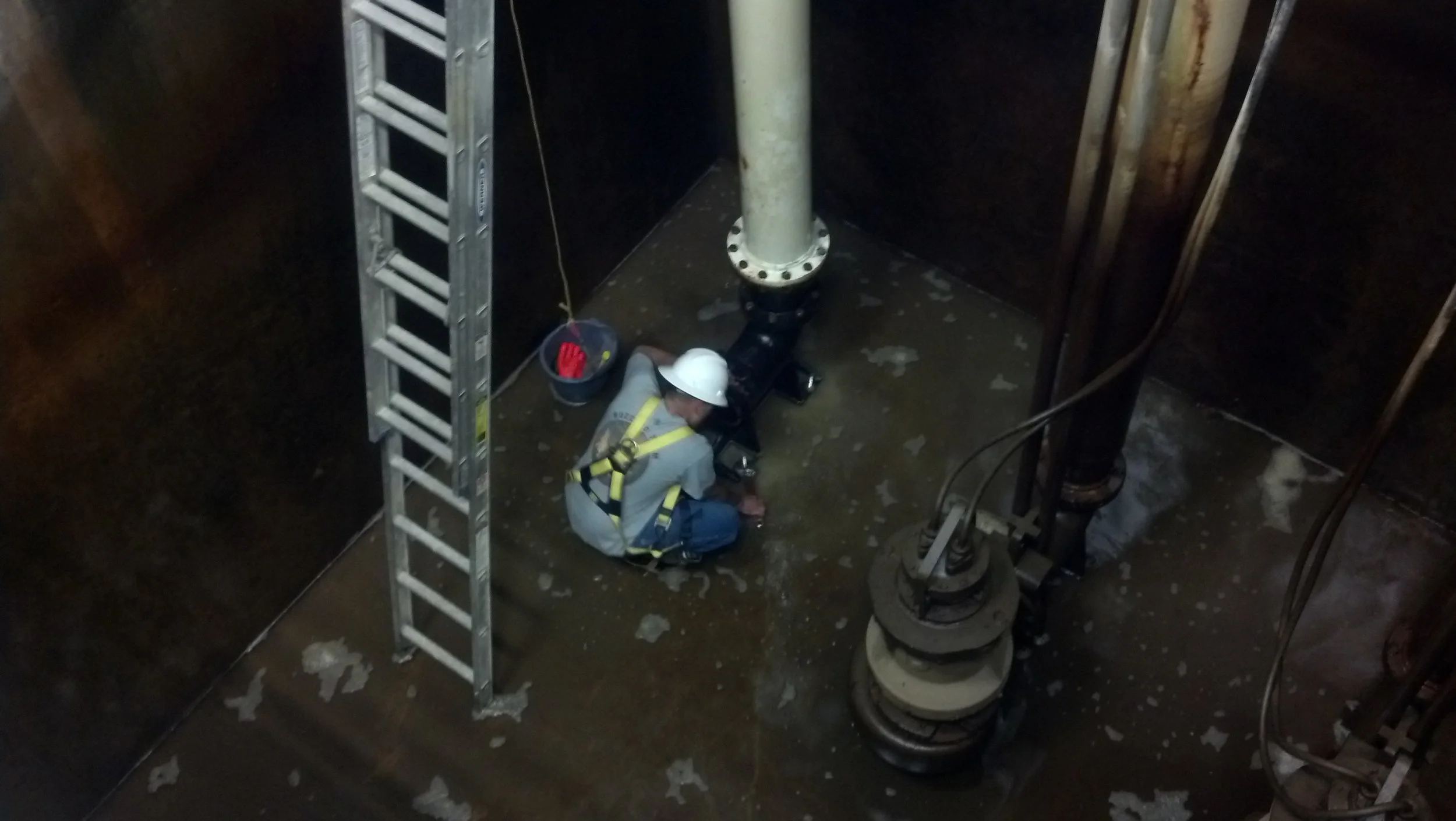

Installing a new feed pump in the plant intake wet-well, used to feed the new 1 MGD treatment skid expansion.

Installing a new feed pump in the plant intake wet-well, used to feed the new 1 MGD treatment skid expansion.
